Rotary DTH Drilling Machine

  • 1
  • 2
  • 3

Place of Origin : CHINA

Brand Name : OEM

Certification : ISO,CE

Supply Ability : Based on the detailed quotation

Packaging Details : Wooden cases standard export package

MOQ : 1 set

Price : Negotiation

Type : Dth Drilling Rig

Power Type : Diesel

Usage : Coal, Ore

Dimension(L*W*H) : 6000*2200*2700mm

Weight : 5800kg

Core Components : Motor, Engine

Key Selling Points : Competitive Price

Applicable Industries : Building Material Shops, Construction works , Energy & Mining

Drilling hardness : f=6-20

Drilling diameter : 90-127mm

Depth of automatic extension rod : 25m

Drilling method : Pneumatic

Rotary speed : 0-90rpm

Air consumption : 13-20m3/min

Power of complete machine : 58kw 2200r/min

Model of engine : Electric And Diesel

Drill Rod : 76*3m or 76*2m

Delivery Time : 10-20 days working days

Payment Terms : T/T, L/C, T/T, Western Union

Contact Now

Rotary DTH Drilling Machine

Product Description

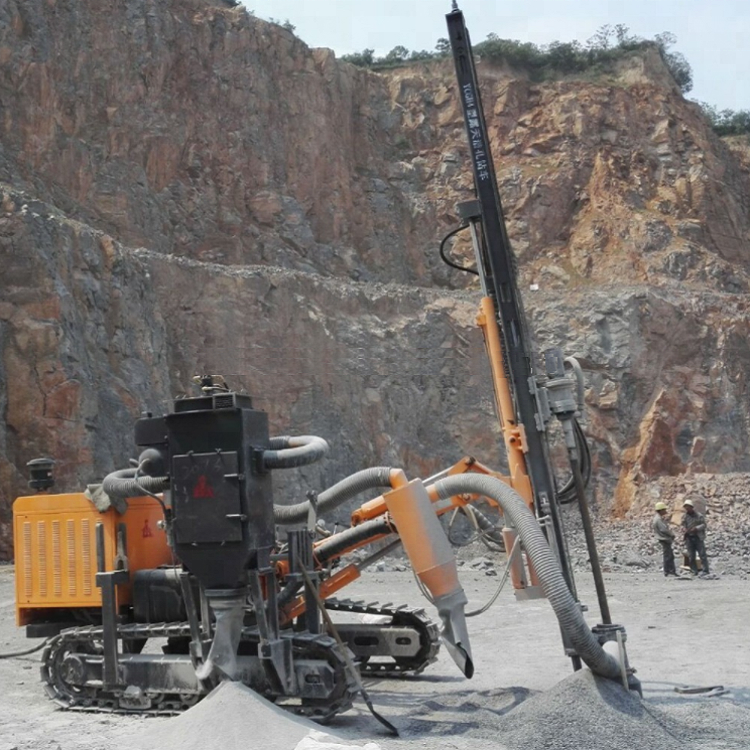

The KG420/KG420H down the hole drill rig for open use is an improved device in compliance with national regulations on diesel-engine emissions. Equipped with the Yuchai four-cylinder engine (China lll), the drill rig meets national standards for emissions and environment. The folding frame track, four-wheel drive and tramming motor of plunger piston improve the working pressure and climbing capacity. The expanded pitch and lifting-arm hydraulic cylinder enable it to meet the requirements on extreme position. The double-motor rotation increases the rotary torque and revolving speed; and the lifting hydraulic cylinder and chain are expanded to promote the lifting force and reliability. The thickened profile folder is used for the housing, thus improving its level of intensity and rigidity; and the additional ring makes handling and lifting convenient.

The KG420H down the hole drill rig for open use is equipped with a dust collector, thus making operation more environment-friendly and reliable.

Product Paramenters

Model of drill rig

KG420

KG420H

eight of complete machine

5200KG

5400KG

Outer dimensions

6000*2150*2500 mm

6000*2250*2500 mm

Drilling hardness

f=6-20

Drilling diameter

90-115mm

Depth of economical drilling

25m

Rotary speed

0-120rpm

Rotary torque

1800N.m

Lifting force

40KN

Method of Feed

oil cylinder-leaf chain

Feed stroke

3980mm

Travelling speed

0-2.5km/h

Climbing capacity

30°

Ground clearance

500mm

Compensation length of beam

900mm

Supporting power

58KW/2200r/min

Drillingrod

76*3m

Air consumption

10-17m³/min

Maximum height of horizontal hole

2750mm

Minimum height of horizontal hole

750mm

Rotary DTH Drilling Machine

Rotary DTH Drilling Machine

Rotary DTH Drilling Machine
