200m HWZ Hydraulic Crawler DTH Drilling Rig Machine

Place of Origin : CHINA

Brand Name : OEM

Certification : ISO,CE

Supply Ability : Based on the detailed quotation

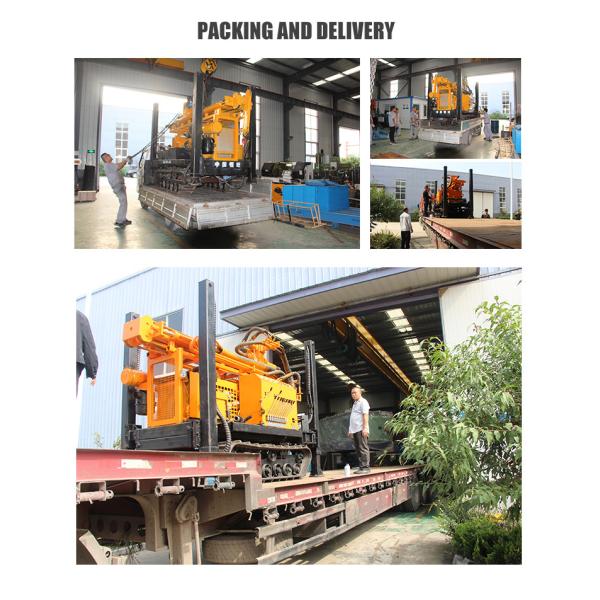

Packaging Details : Wooden cases standard export package

MOQ : 1 set

Price : Negotiation

Key Selling Points : Competitive Price

Applicable Industries : Energy & Mining

Type : Rotary Drilling Rig

Power Type : Diesel

Usage : Water Well

Voltage : 380V

Dimension(L*W*H) : 3400*1500*2400

Weight : 3500kg

Core Components : Pressure vessel

Product name : DTH Drilling Machine

Drilling depth : 150m

Drilling diameter : 130-219mm

Engine : Disel Engine

Drill rod length : 1.5m

Feature : High Drilling Efficiency

Air consumption : 18m3

Walk Speed : 0-2.5kw/h

Motor power : 42kw

Delivery Time : 10-20 days working days

Payment Terms : T/T, L/C, T/T, Western Union

Contact Now

200m HWZ Hydraulic Crawler DTH Drilling Rig Machine

Main Features

1: These DTH drilling rig three major components, host, pump station, console.

2: These DTH drilling rig are small size, light weight, easy to install.

3: rig layout flexible, mechanized twist drill pipe, reduce labor intensity, improve work efficiency.

4: In the original transport, prospecting roadway can be put into production, the overall structure of the mine play a protective role. These DTH drilling rig can also be used for surface 0-90 degree drilling.

5: with a linkage function, through the console centralized control, simple and safe, stepless speed.

6: the use of box-type to the rack, the holder to tighten, power head rotary drilling, cylinder pull drilling tools, Save the bulky rig.

7: hollow shaft design, drill pipe length is not limited by drilling rig. Can be drilled at any angle of 360 °.

8: disintegration is good, easy to move and transport. Φ33-Φ43 drill pipe can be used with the machine, the replacement only 15 minutes. .

Product Description

HWZ hydraulic down-hole drilling rig is a multi-functional drill rig driven by internal combustion engine, the drilling power was provided by hydraulic system except for impacting and the hole cleaning wind. It is convenient and efficient to operate. This drill is the best replacement for traditional pneumatic drills in most operation. The drill is compact in structure, simple in operation, light in total weight. HWQ hydraulic crawler drilling rig is widely used for blast-hole drilling in the mines and quarries. It is also used for anchor in road, railway, power station, civil engineering and building etc.

Model

HWZ150L

HWZ260L

HWZ300L

HWZ400L

HWZ500L

Overall weight (T)

3.5

6.4

8

8.7

9.5

Dimension (mm )

3400*1500*2400

4100*1900*2600

5500*1950*2780

5300*2050*2700

5350*2100*2700

Drilling diameter(mm )

130-219

140-300

140-325

130-400

140-400

Drilling depth(m)

150

260

300

400

500

One-time advance length of the drill(mm)

3000

3000

3000/6000

3000/6000

3000/6000

Traveling speed(km/h )

2.5

2.5

2.5

6

6

Climbing ability(max )

25

30

30

25

25

Minimum Ground Clearance(mm)

250

250

230

300

350

Working Air Pressure(mpa )

1.45 - 2.5

1.7-3.0

1.7-3.3

1.7-3.5

1.7-3.5

Air consumption

15 - 27

17-35

23

17-35

17-35

Main machine power(kw)

42 /Yunnei

85/Yuchai

92/Yuchai

100/6 cylinder

114/6 cylinder

Rotary Speed (rpm)

38 - 80

40-70

55-115

45-75

45 - 75

Rotary torque(Nm )

4000-5000

7000-9000

8500-10000

9000-10000

9500-10000

200m HWZ Hydraulic Crawler DTH Drilling Rig Machine
